TC100 Automatic Tension Controller
TC100 is an automatic tension controller for maintaining stable web tension in unwind, process and rewind sections. It supports constant tension, taper tension and speed-synchronous control for converting and web handling lines.
Key Features
Built for practical web tension control applications.
- 4.3-inch color screen with LED digital display for clear operation and monitoring.
- Dual potentiometers for direct tension setting and manual output setting.
- One-step zero adjustment and tension calibration.
- Opto-isolated or magnetic-isolated outputs help improve anti-interference performance in industrial environments.
- Supports fully automatic, semi-automatic and speed-synchronous tension control modes.
- Compatible with magnetic powder clutches and brakes, pneumatic clutches and brakes, torque motors, servo motors and dual-frequency motors.
- Dual-axis output supports pre-output during A/B axis switching to reduce tension fluctuation during splicing.
- Supports embedded, wall-mounted and integrated installation.
| Model | TC100 |
|---|---|
| Product Type | Automatic tension controller |
| Display | 4.3-inch color screen with LED digital displays |
| Control Modes | Automatic constant tension, taper tension, semi-automatic control and speed-synchronous tension control |
| Manual Setting | Dual potentiometers for tension and manual output setting |
| Calibration | One-step zero adjustment and tension calibration |
| Output / Drive Compatibility | Magnetic powder clutch/brake, pneumatic clutch/brake, torque motor, servo motor and dual-frequency motor |
| Axis Output | Dual-axis output for A/B axis switching |
| Installation | Embedded, wall-mounted or integrated installation |

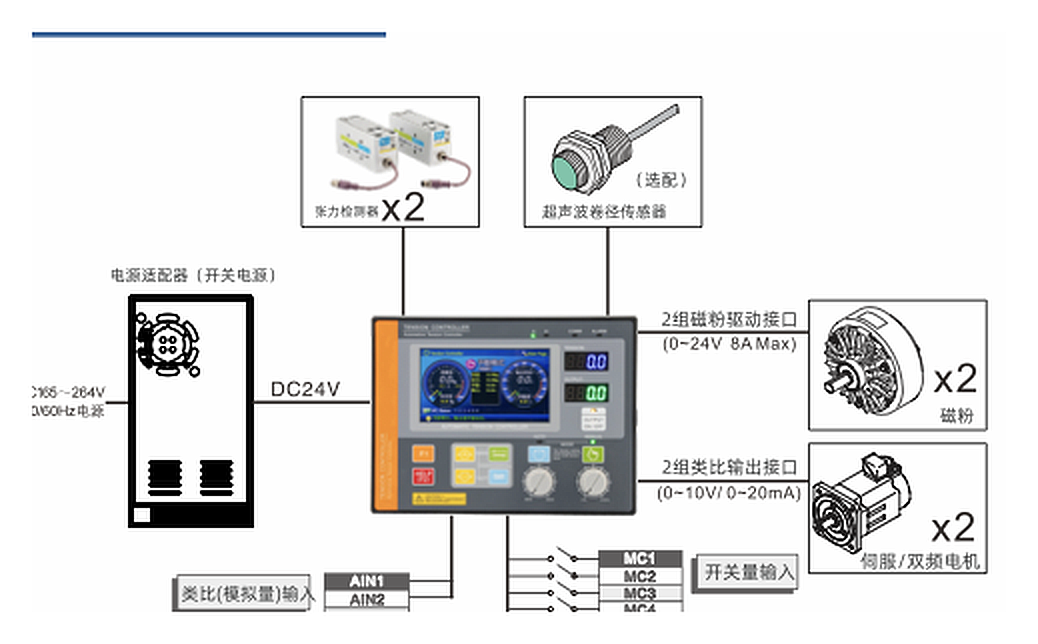

System Wiring Reference
Reference wiring diagram for TC100 tension control configuration.
Compatible Components
Signal Amplifier
Tension Sensors
LC100A Pedestal-Mount Tension Sensor
Compact pedestal-mount tension sensor with low temperature drift, high stability and good linearity.
View ModelLS100A Through-Shaft Tension Sensor
Stainless-steel through-shaft tension sensor with IP66 protection for harsh converting environments.
View ModelLF100A Through-Shaft Tension Sensor
Live-shaft flange tension sensor with built-in self-aligning bearings for reliable web tension measurement.
View ModelLFP100A Through-Shaft Tension Sensor
Compact flange tension sensor with self-aligning bearings for easy roller installation and maintenance.
View ModelLX100A Cantilever Tension Sensor
Cantilever roller tension sensor for stable detection independent of web position on the roller.
View ModelTypical Applications
Unwind Tension Control
Maintains stable tension as roll diameter changes during unwinding.
Rewind Tension Control
Supports taper tension and consistent roll formation during rewinding.
Printing & Converting Lines
Stable web tension for printing, coating, laminating and converting processes.
Slitter Rewinders
Tension control support for unwind, process and rewind sections.
