Pedestal-Mount Tension Sensor
LC100A Pedestal-Mount Tension Sensor
LC100A is a pedestal-mount tension sensor for measuring web tension through leaf spring deflection. It is suitable for compact installations where stable, linear tension feedback is required for web tension control.
Key Features
Compact pedestal-mount tension sensing for web tension control applications.
- Excellent linearity for accurate tension detection.
- Low temperature drift and precise zero output.
- Overload protection with a braking structure for strong overload resistance.
- Compact size and compatible mounting dimensions help save installation space.
Model Load Options
| Model | Rated Load |
|---|---|
| LC100-005 | 5 kg |
| LC100-010 | 10 kg |
| LC100-015 | 15 kg |
| LC100-030 | 30 kg |
| LC100-050 | 50 kg |
| LC100-100 | 100 kg |
General Specifications
| Working Principle | Leaf spring deflection |
|---|---|
| Working Environment | −10°C to +60°C, RH <90%, non-condensing |
| Temperature Stability | <0.3% from −10°C to +60°C |
| Operating Voltage | 5 V |
| Full-Scale Output | 10 mV or 200 mV |
| Weight | Approx. 2 kg |
| Bearing | 204# |
Dimensions

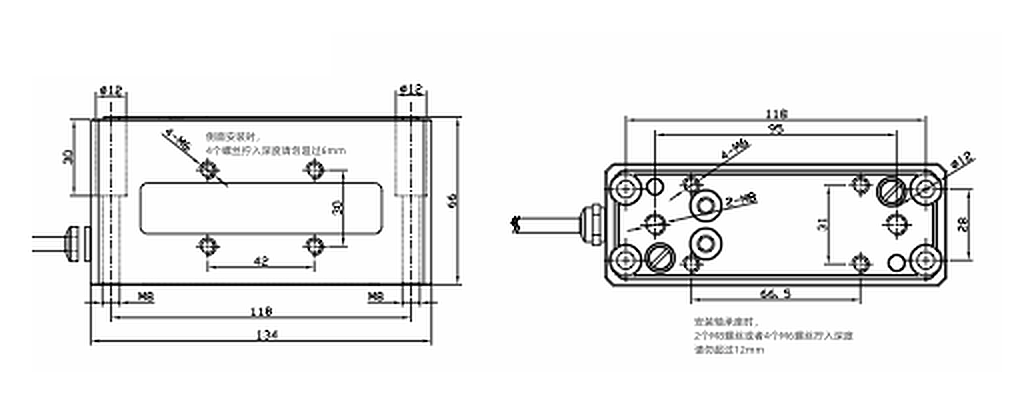

Mounting and dimension drawing
Selection Notes
Choose LC100A when a compact pedestal-mounted tension sensor is required for stable web tension feedback.
| Good Fit | Compact roller installations, standard converting machines and applications requiring stable linear tension feedback. |
|---|---|
| Check First | Confirm roller mounting structure, rated load, web tension range, bearing arrangement and installation space before selection. |
| System Match | Use with compatible tension controllers, signal amplifiers and roller structures according to the required tension range and output signal. |
Typical Applications
Process Tension Control
Stable tension measurement through printing, coating, laminating or converting sections.
Rewind Tension Feedback
Supports tension feedback for rewind control and roll quality improvement.
Compact Machine Layouts
Suitable for machines where installation space around the roller is limited.
