Cantilever Tension Sensor
LX100A Cantilever Tension Sensor
LX100A is a cantilever tension sensor with a single-cantilever roller structure for web tension measurement. It provides stable tension feedback with reduced sensitivity to web position changes on the roller surface.
Key Features
Cantilever roller tension sensing for stable web tension feedback.
- Cantilever roller structure supports simple installation and compact machine layouts.
- Multiple rated load options are available for different tension ranges.
- Multiple roller width specifications help reduce the influence of web position changes.
- Custom roller width, roller diameter and surface treatment options are available.
- Suitable for stable web tension detection in unwind, process or rewind sections.
| Excitation Voltage | DC 5–12 V |
|---|---|
| Rated Load | 25 kg / 50 kg / 100 kg |
| Output Voltage | 2 mV/V |
| Strain Gauge Resistance | 350 Ω |
| Strain Gauge Type | Full-bridge semiconductor |
| Non-Linearity / Hysteresis Error | ±0.05% of range |
| Maximum Overload | 300% of rated load |
| Protection Rating | IP54 |
| Temperature Range | Compensation: −10°C to +55°C; operation: −20°C to +85°C |
| Model | Roller Width / Layout | Rated Load | Diameter A | B | C | D | Diameter E | Diameter K | Diameter J |
|---|---|---|---|---|---|---|---|---|---|
| LX100A-L | 220 mm layout | 10 kg, 25 kg, 50 kg, 100 kg | 60 | 220 | 65 | 280 | 90 | 75 | 9 |
| LX100A-L | 420 mm layout | 10 kg, 25 kg, 50 kg, 100 kg | 60 | 420 | 65 | 480 | 90 | 75 | 9 |

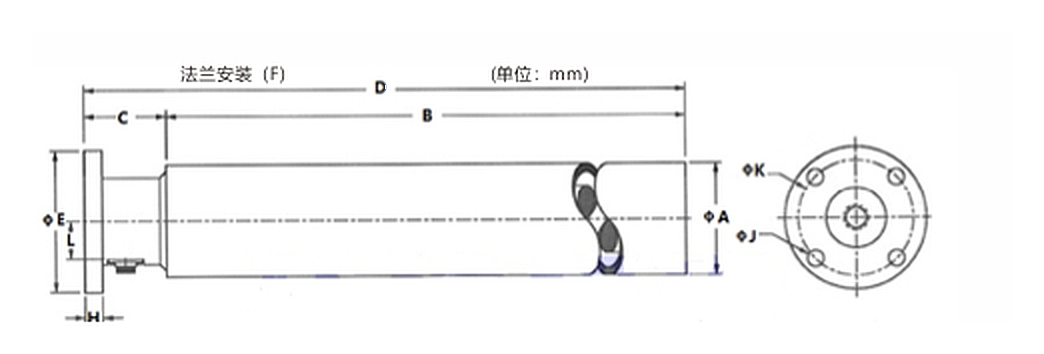

Dimensions
Dimension drawing
Selection Notes
Choose LX100A when a cantilever roller tension sensor is required for simple installation and stable web tension feedback.
| Good Fit | Cantilever roller installations, compact machine layouts and applications where web position on the roller may vary. |
|---|---|
| Check First | Confirm roller width, roller diameter, rated load, surface treatment, web width and installation space before selection. |
| System Match | Use with compatible tension amplifiers, indicators, transmitters or automatic tension controllers according to the required output signal and control architecture. |
Typical Applications
Unwind / Rewind Sections
Tension measurement for unwind and rewind sections where cantilever roller installation is suitable.
Slitter Rewinders
Stable tension detection for slitting and rewinding applications.
Custom Roller Applications
Suitable when roller width, diameter or surface treatment needs to be customized.
