Live-Shaft Roller Installations
Tension feedback for rollers using live-shaft mounting structures.
Through-Shaft Tension Sensor
LF100A Through-Shaft Tension Sensor
LF100A is a live-shaft flange tension sensor with built-in self-aligning ball bearings. It helps compensate for shaft installation errors and provides stable web tension feedback for converting and web handling equipment.
Key Features
Live-shaft flange tension sensing with self-aligning bearing support.
- Selectable output signals such as 0–5 V, 0–10 V or 4–20 mA.
- Compatible with automatic tension controllers and signal amplifiers.
- Live-shaft flange structure with built-in self-aligning bearings.
- Four-bolt flange mounting for machine side-frame installation.
- Helps compensate for shaft installation errors and maintain stable measurement.
| Model Series | LF100A |
|---|---|
| Product Type | Live-shaft flange tension sensor |
| Power Supply | DC 10 V |
| Accuracy Class | 0.5% |
| Repeatability Error | ±0.25% FS |
| Combined Non-Linearity and Hysteresis Error | ±0.5% FS |
| Standard Temperature | 0–50°C |
| Maximum Overload | 500% |
| Protection Rating | IP66 |
| Model | Range (kg) | Bearing Size | Bearing Model |
|---|---|---|---|
| LF100A-005-17S | 5 kg | 40 × 17 | 1203 |
| LF100A-015-17S | 15 kg | 40 × 17 | 1203 |
| LF100A-025-17S | 25 kg | 40 × 17 | 1203 |
| LF100A-050-17S | 50 kg | 40 × 17 | 1203 |
| LF100A-100-17S | 100 kg | 40 × 17 | 1203 |
The listed load value applies to one sensor. When two sensors are used as a pair, the applicable load value is doubled. The “S” model indicates the cable outlet direction.
Dimensions

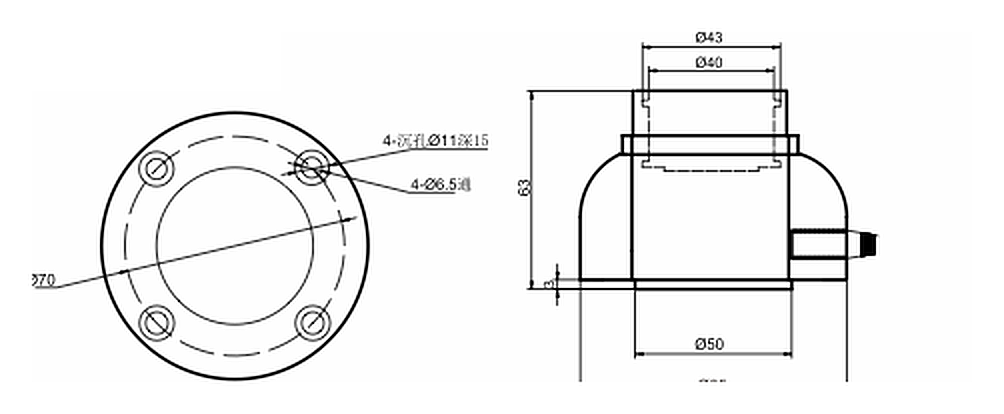

Mounting drawing
Selection Notes
Choose LF100A when a live-shaft flange tension sensor is required and the roller installation needs self-aligning bearing support.
| Good Fit | Live-shaft roller structures, flange-mounted installations and applications where shaft alignment compensation is useful. |
|---|---|
| Check First | Confirm shaft diameter, bearing arrangement, rated load, mounting space, output signal and side-frame structure before selection. |
| System Match | Use with compatible tension amplifiers, indicators, transmitters or automatic tension controllers according to the required output signal and control architecture. |
Typical Applications
Printing & Converting Lines
Stable web tension measurement in printing, laminating, coating and converting processes.
Unwind / Rewind Tension Feedback
Tension monitoring for unwind and rewind sections where flange mounting is suitable.
Machine Retrofit Projects
Useful when upgrading existing equipment with flange-mounted tension sensing.
