CCD01 Plus Digital Photoelectric Sensor

CCD01 Plus is a digital photoelectric sensor with a reversible screen for flexible viewing direction during installation and operation. It uses CCD imaging to track printed lines, color edges, transparent film edges and combined graphics in web guiding applications.

Request Quotation

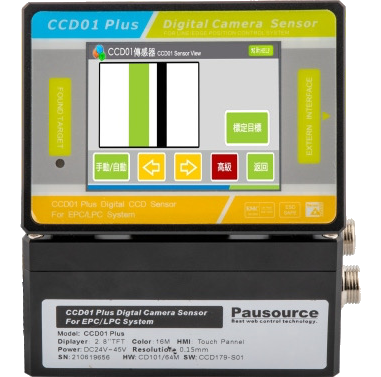

CCD01 Plus digital photoelectric sensor with reversible screen

Key Features

Reversible-screen CCD sensing for flexible installation and operation.

2.8-inch full-color display directly shows the material line.
High-speed color CCD imaging, up to 1000 fps.
Reduced influence from ambient light in typical production conditions.
Tracks printed lines, color edges, transparent film edges and combined graphics.
Operator interface supports automatic edge or line tracking setup.
Laser-assisted focusing for practical setup.
Reversible-screen design supports flexible viewing direction during installation and operation.

Model	CCD01 Plus
Sensor Type	CCD digital photoelectric sensor with reversible screen
Source / Brand	Pausource
Power Supply	DC 24–45 V
Output Signal	Digital communication
Detection Range	20 mm
Detection Accuracy	0.02 mm
Detection Mode	CCD imaging
Illuminant	White / red / green / blue light
Shell Material	Aluminum-magnesium alloy
Protection Class	IP54

Selection Notes

Choose CCD01 Plus when CCD image sensing is required and the screen viewing direction needs to be flexible during installation or operation.

Good Fit

Printed line tracking, color edge detection, transparent film edge tracking and graphic tracking where the operator needs a reversible screen.

Check First

For simple opaque web edge detection, infrared sensing may be sufficient. For transparent or very low-contrast materials without visible features, ultrasonic sensing may be more suitable.
