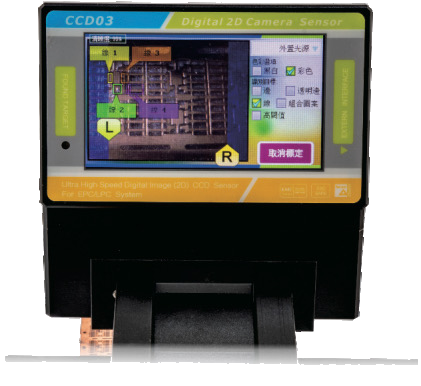

CCD03 Digital Image Sensor

CCD03 is a high-recognition digital image sensor for difficult web guiding targets such as low-contrast edges, burr edges, uneven material thickness and laser film materials. It is used when standard optical or CCD sensing may not provide reliable recognition.

Request Quotation

Key Features

High-recognition image sensing for difficult web guiding targets.

High-recognition image sensing for difficult edges and low-contrast web materials.
13-megapixel lens with capture frame rate up to 120 fps.
Standard accuracy can reach 0.01 mm.
24 × 16 mm recognition range.
Recognition support for 3D wallpaper, laser film and external light source applications.
Applied to uneven thickness, burr edge, low-contrast and laser film materials.

Model	CCD03
Sensor Type	Digital image sensor
Source / Brand	Pausource
Lens	13 megapixels
Capture Frame Rate	Up to 120 fps
Standard Accuracy	0.01 mm
Recognition Range	24 × 16 mm
Algorithms	Recognition support for 3D wallpaper, laser film and external light source applications
Typical Use	Uneven thickness, burr edge, low-contrast and laser film materials

Selection Notes

Choose CCD03 when standard CCD, infrared or ultrasonic sensing cannot provide stable recognition for difficult web targets.

Good Fit

Low-contrast edges, burr edges, uneven material thickness, laser film and difficult visual features.

Check First

For simple edge detection, infrared or ultrasonic sensors may be more cost-effective. CCD03 is more suitable when recognition difficulty is the main problem.
