Ball-Type Differential Winding
Ball slip shafts can be configured as center-air, pneumatic side-pressure or mechanical side-pressure slip shafts for flexible narrow-roll winding.

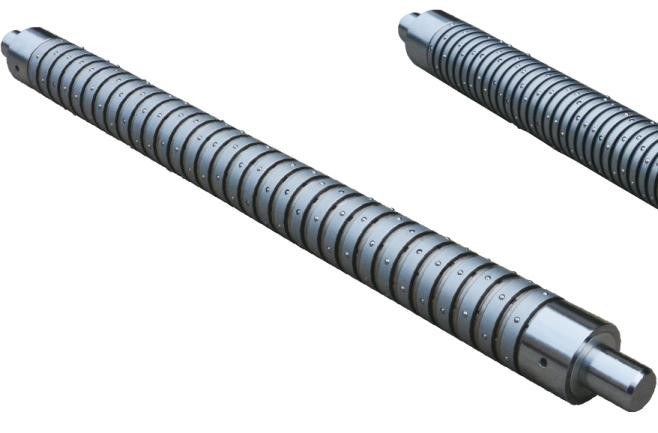

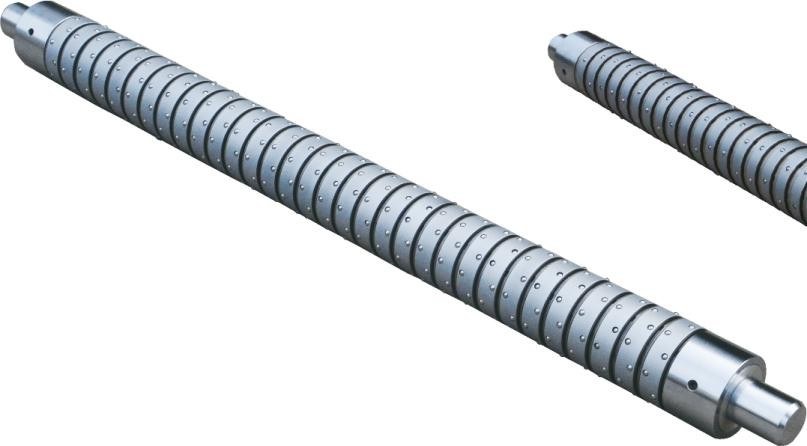

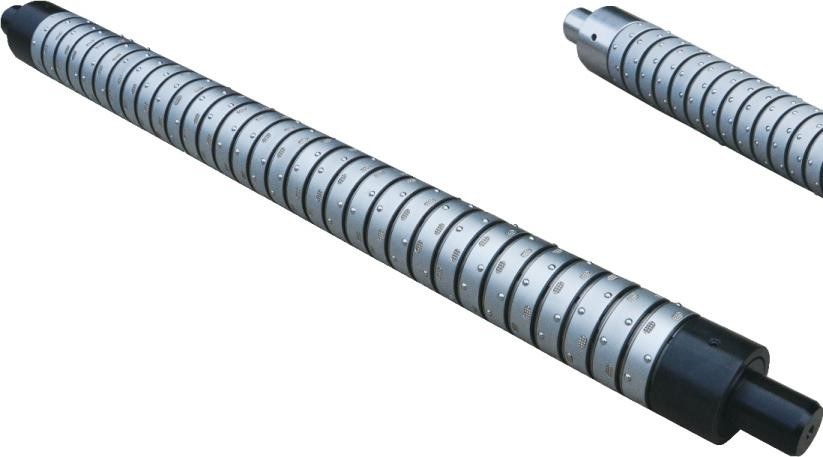

Slip Shaft
Narrow-width slitting from 5 mm and general film, paper and label rewinding where roll-specific torque compensation is required.
| 3-inch Ring | 75.5 mm OD, 78.2 mm maximum expansion |
|---|---|
| 6-inch Ring | 151 mm OD, 155.5 mm maximum expansion |
| Core Sizes | 76.2 +/- 0.2 mm and 152.4 +/- 0.2 mm |
| Widths | Single-ball 10-25 mm; double-ball 15-50 mm |
| Minimum Slitting Width | From 5 mm depending on shaft and ring layout |

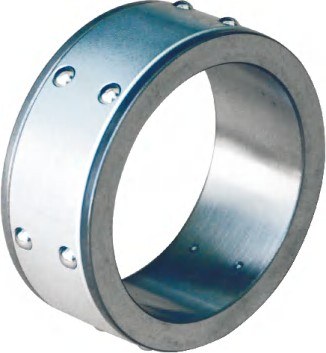

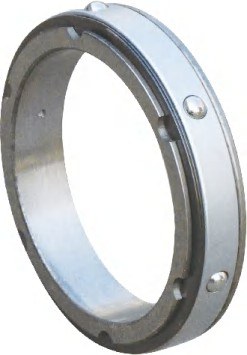

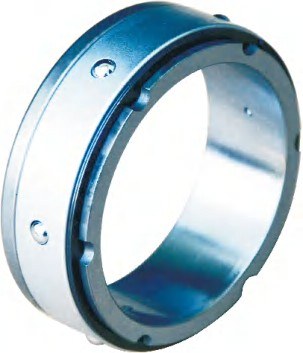

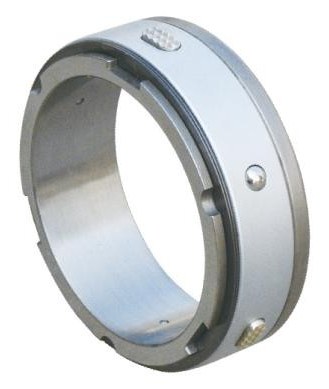

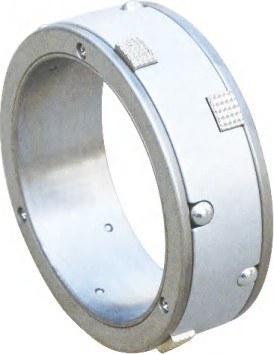

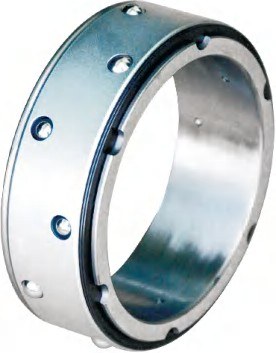

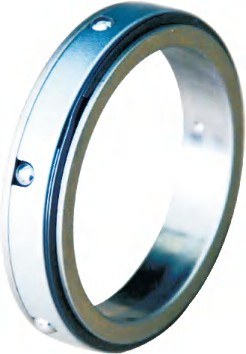

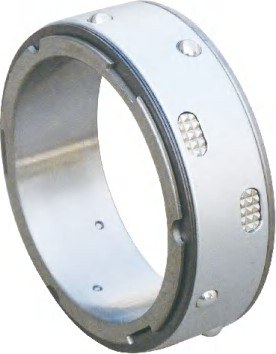

Slip Ring
Slip rings are shown as compact thumbnails because many source images are small. This keeps the visual quality natural while still showing the available ring forms.
Confirm core material, core inner diameter, required width, winding tension range, shaft structure and whether the application needs low starting tension or higher roll-holding force.
Technical Data
Values are translated from the supplied product document and should be confirmed against the actual shaft structure, ring width, groove material and air path before final selection.
Test condition: 3-inch double-ball slip ring, 25 mm width, 60 mm inner diameter, 20 x 3 groove with wool felt.
| Air Pressure (kg/cm2) | 0 | 0.2 | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 | 2.2 | 2.4 | 2.6 | 2.8 | 3.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pull Force (kg) | 0.17 | 0.21 | 0.41 | 0.52 | 0.79 | 1.00 | 1.12 | 1.38 | 1.54 | 1.77 | 1.87 | 1.99 | 2.08 | 2.14 | 2.24 | 2.46 |
Continuation of the 3-inch double-ball slip ring test.
| Air Pressure (kg/cm2) | 3.2 | 3.4 | 3.6 | 3.8 | 4.0 | 4.2 | 4.4 | 4.6 | 4.8 | 5.0 | 5.2 | 5.4 | 5.6 | 5.8 | 6.0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pull Force (kg) | 2.62 | 2.78 | 2.85 | 3.12 | 3.33 | 3.42 | 3.61 | 3.86 | 4.00 | 4.26 | 4.42 | 4.66 | 4.92 | 5.12 | 5.24 |
