AC Ionizing Bar
XK700 Series AC Ionizing Bar
An AC ionizing bar series for film, paper, label and packaging applications, using a compact blue bar body with a protected high-voltage cable connection.
Technical Parameter
Catalog parameters for XK700 Series AC Ionizing Bar.
The XK700 catalog section combines the XK-700 static power supply with XK-700BG, XK-730BG and XK-700BQ static bar models.
| Catalog Products | XK-700 Static Power Supply; XK-700BG Static Bar; XK-730BG Static Bar; XK-700BQ Static Bar |
|---|---|
| Output Voltage | Listed in the catalog technical parameter table |
| Output Interface | Yes |
| Output Current | Listed in the catalog technical parameter table |
| Power | 20W / 19W values shown in catalog tables |
| Discharge Method | Corona discharge |
| Discharge Distance | Listed by bar model |
| Total Bar Body Length | 100~3300mm |
| Total Emitters Length | 100~3300mm |
| Optimum Mounting Height | Listed in the catalog dimensional data |
Product Features
Features shown in the static control catalog.
- XK700 series includes multiple static bar styles for different installation occasions.
- Catalog presents XK-700BG, XK-730BG and XK-700BQ product feature areas.
- Static bar models use corona discharge for AC static elimination.
- Matched with XK-700 static power supply series.
Industry Application
Application areas from the catalog.
Printing
Catalog-listed application area for this static control product family.
Packaging
Catalog-listed application area for this static control product family.
Web and sheet handling
Catalog-listed application area for this static control product family.
Other industrial static elimination applications
Catalog-listed application area for this static control product family.

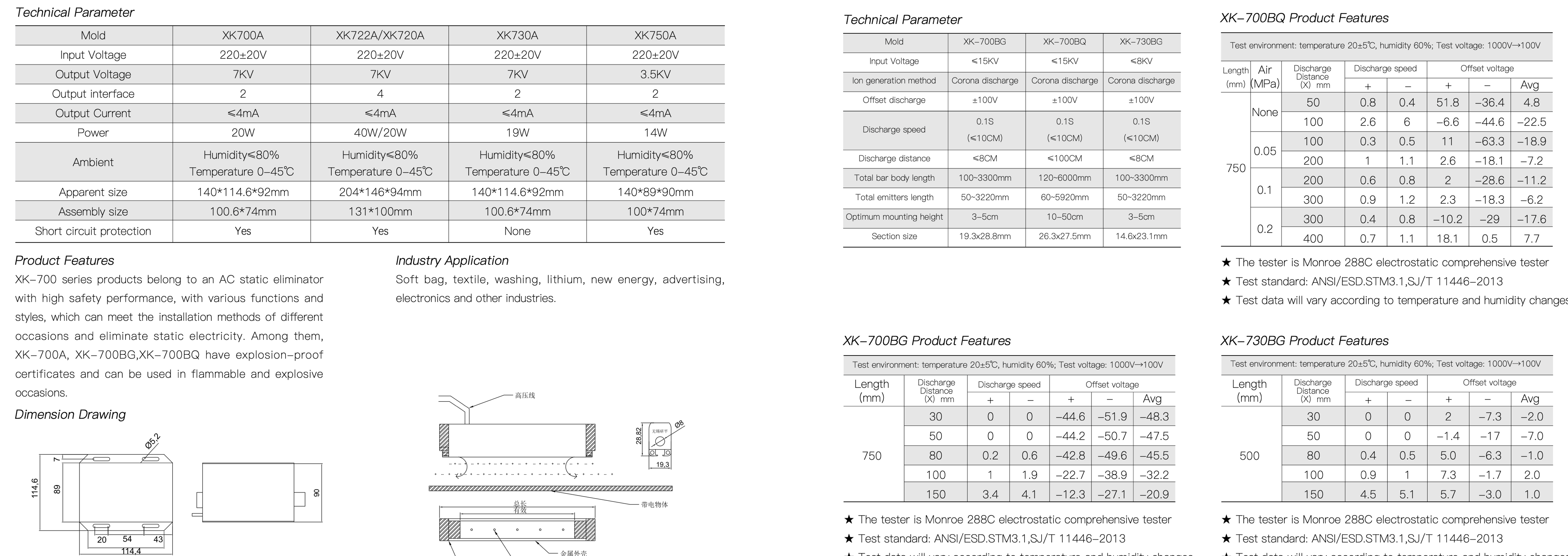

Dimension Drawing
PDF catalog dimension drawing and table.
